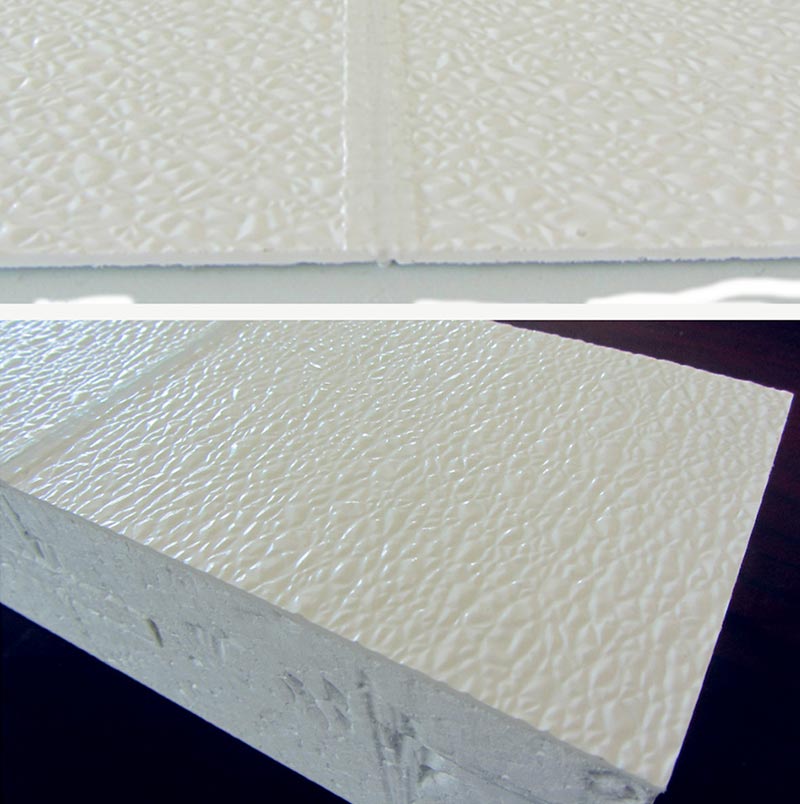

Embossed Fiberglass Foam Sandwich PAnel
A=FRP Skin +EPS (expanded polystyrene) FOAM + FRP Skin
B=FRP Skin +XPS (extruded polystyrene) FOAM + FRP Skin
Product Detail
Structure:

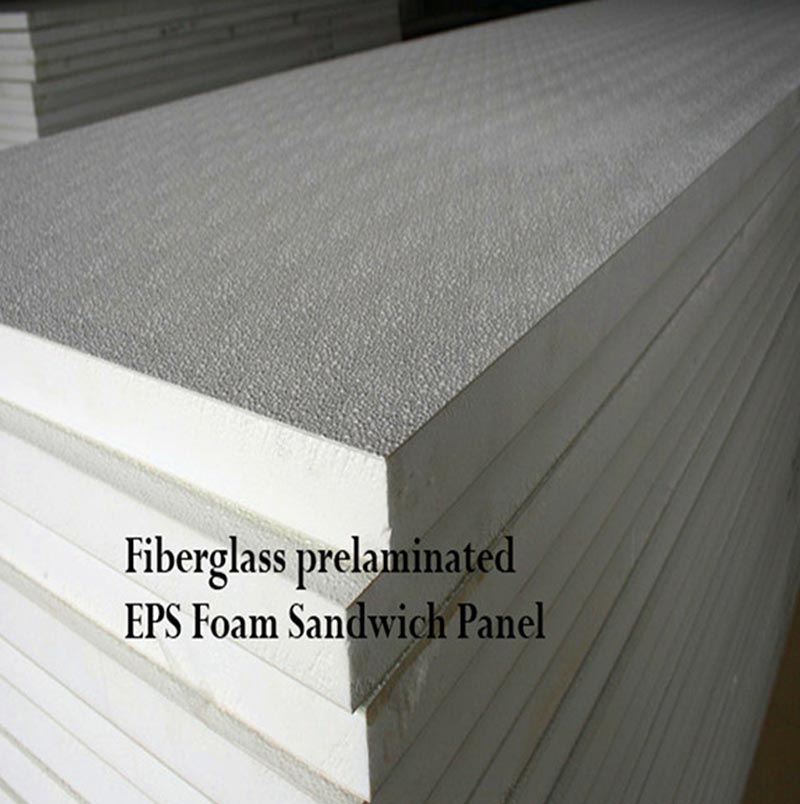

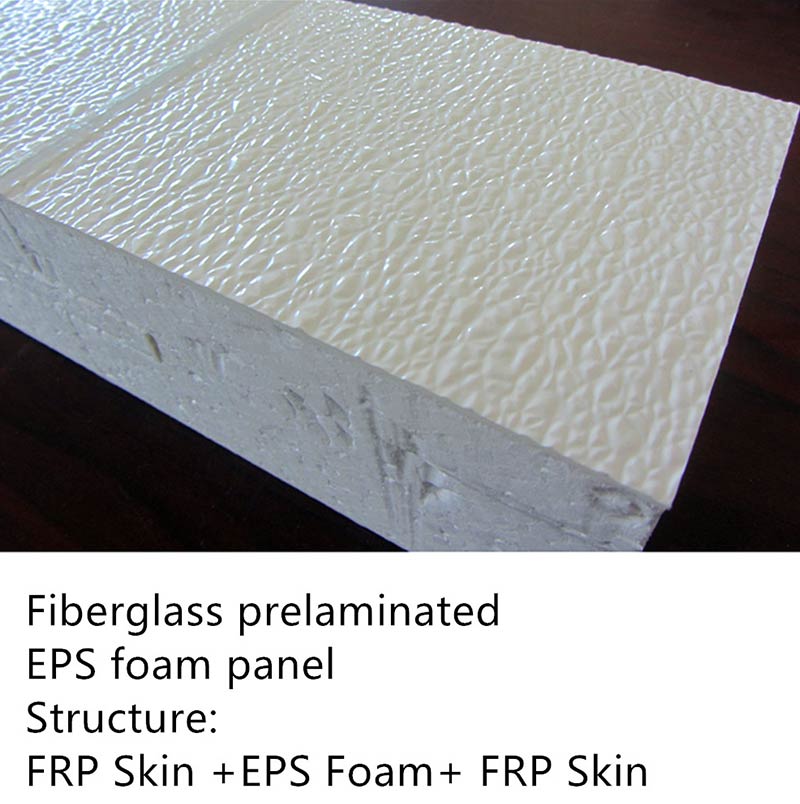

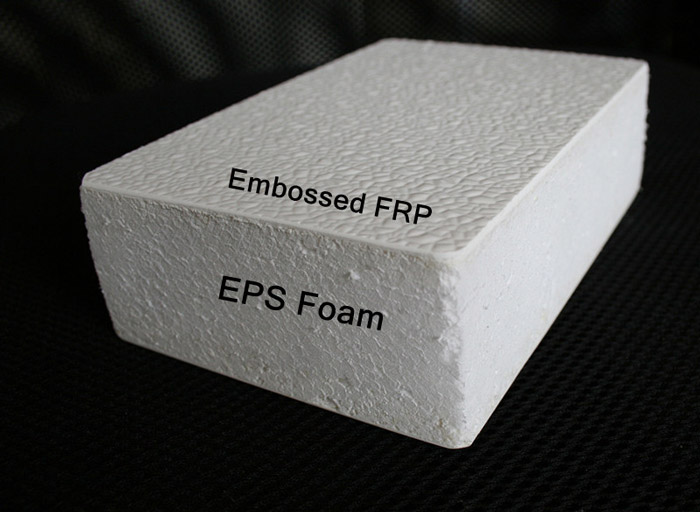

A=FRP Skin +EPS (expanded polystyrene) FOAM + FRP Skin

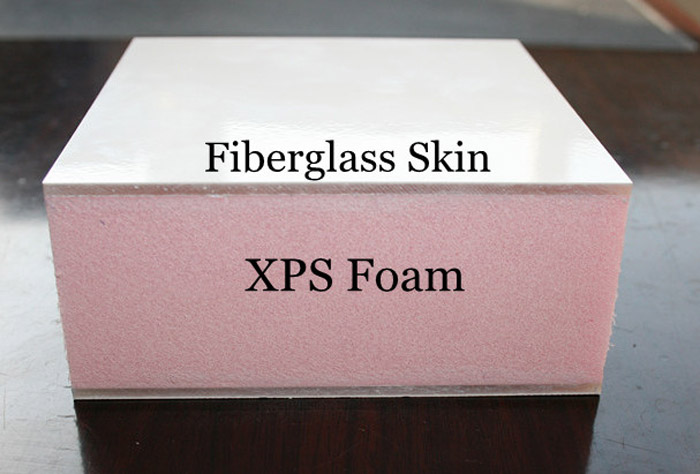

B=FRP Skin +XPS (extruded polystyrene) FOAM + FRP Skin
Surface choices:
Both Flat and Decorative Skin
Popular Format:
1.65mm Fiberglass skin with XPS foam
Overall Thickness: 44.3mm
1.50mm Fiberglass skin with EPS Foam
Overall Thickness: 45.0mm and 50mm
Overview:
| Thickness: | 18mm-150mm,according to your application |
| Width: | up to 2615m |
| Length: | Within 12m due to container limit |
| Colors: | RAL- scale or customer-specific shades |
| A=EPS density | 18,21 and 27kg/m3 |
| B=XPS density | 35,40kg/m3 |
| uv/weathering | Excellent protection(optional) |
| Bonding preparation: | both side smooth or sanded;bonding with appropriate adhesives possible |
Typical Features:
1. Light-weight &high-intensity
2.fire resistant & insulation
3. Anti-impact &scratch
4. Corrosion resistant
5. easy to clean & install
6. Anti-mildew, mould, moisture, resistant
7. Resilient to weathering and hail
8. Excellent thermal characteristics

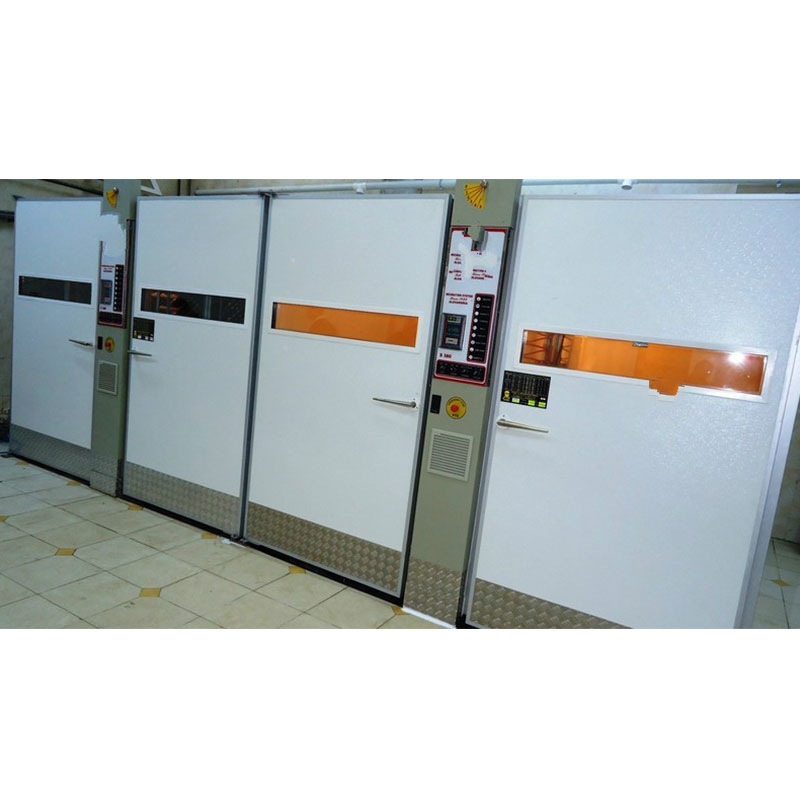

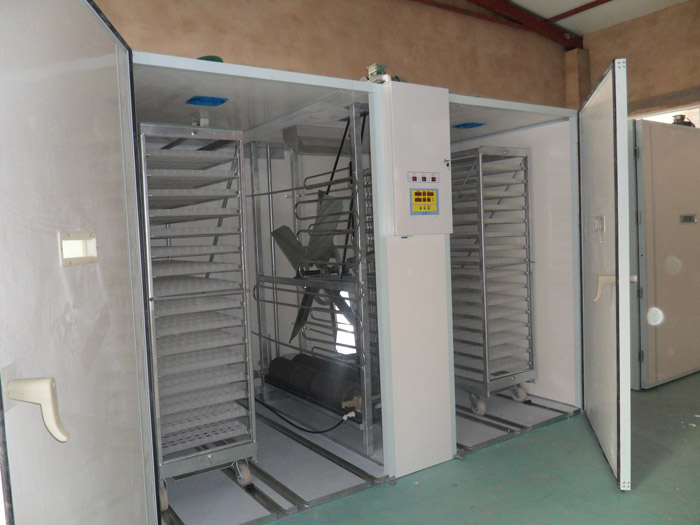

Finished project:
