Fiberglass Plywood Panel

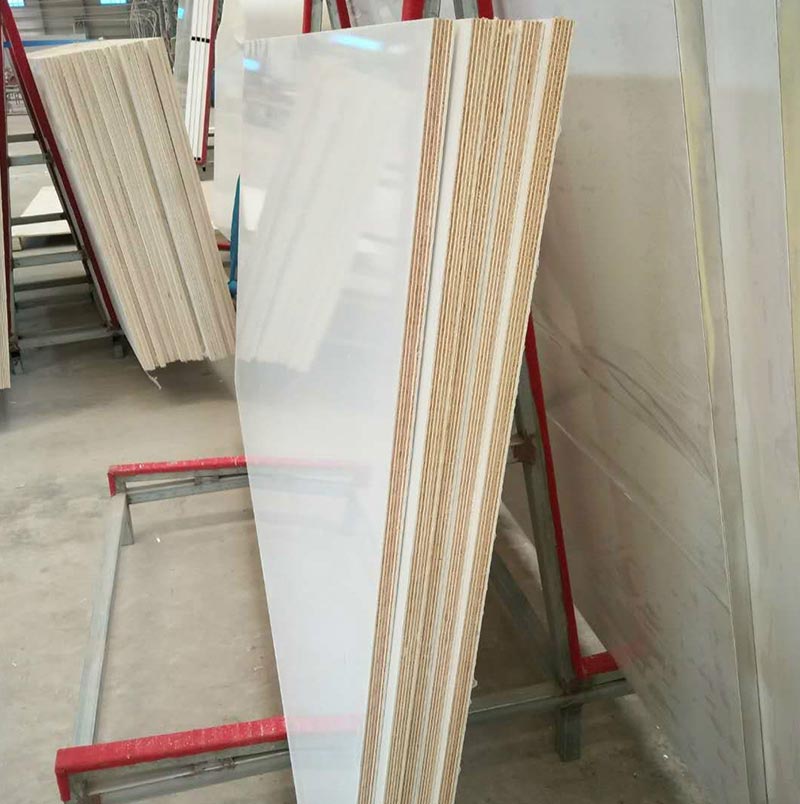

Hengyi FRP Plywood panel are strong, smooth, aesthetic and impact resistant panels
Can be colored in the mass starting from 100m²
Product Detail
Short description
Hengyi FRP Plywood panel are strong, smooth, aesthetic and impact resistant panels
Can be colored in the mass starting from 100m²

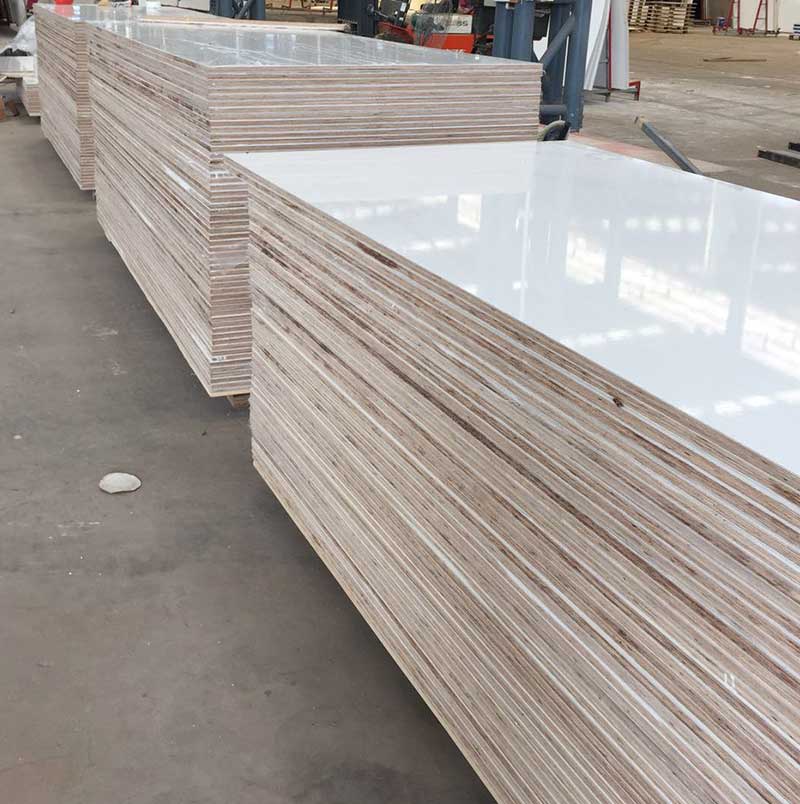

Hengyi FRP Plywood panels boast the best possible gloss thanks to the stainless steel tables on which they are produced

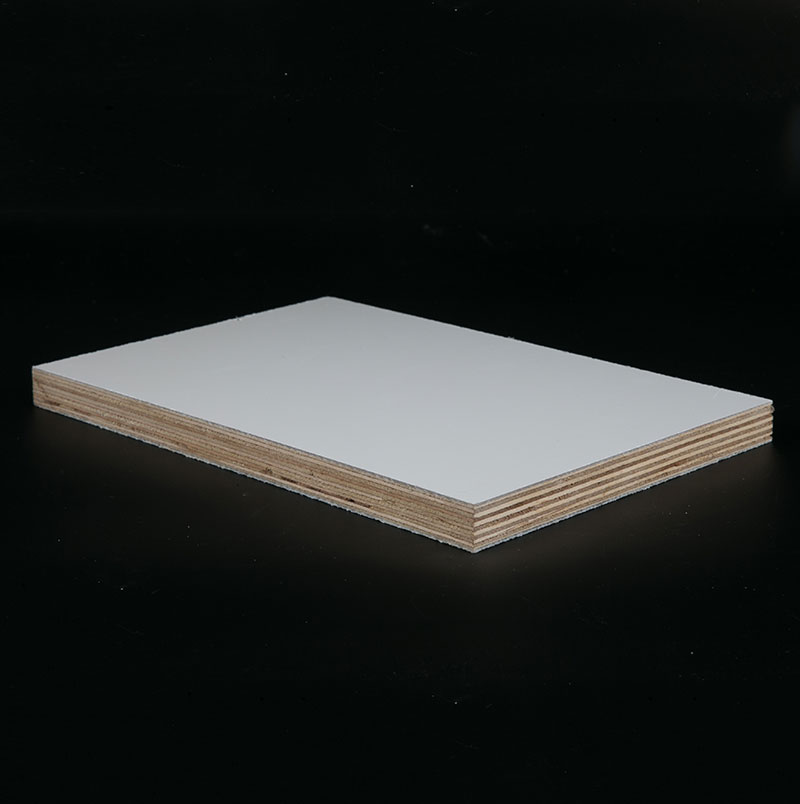

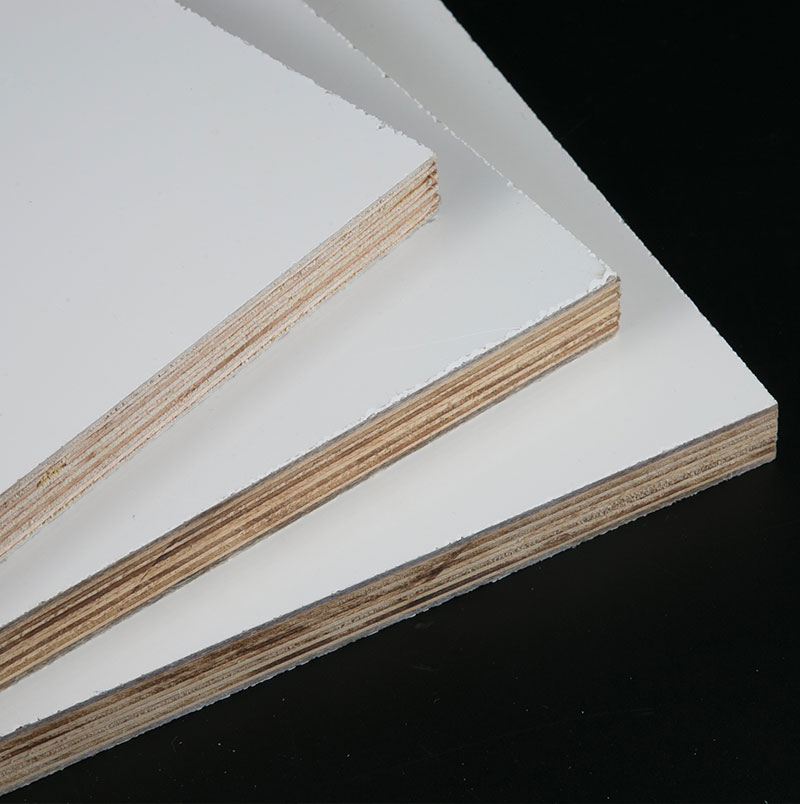

Laminates:
polyester skin reinforced with fiberglass and finished with a high gloss white pigmented 0,4mm polyester gel coat
Core:
a multi veneers plywood panel, consisting of up to 11 or 13layers which are water tightly bonded
Dimensions and weights
Maximal panel length (Lpa) = up to 12000mm
Maximal panel height (Hpa) = up to 3.000mm
Typical Panel thicknesses (Tpa) = 11mm - 14mm - 17mm - 21mm - 24mm
| Tpa Thickness | Weight (per m²/+/-5%) : |
| 11 mm | 8.9 KG |
| 14 mm | 10.4 KG |
| 17 mm | 11.9 KG |
| 21 mm | 13.4 KG |
| 24 mm | 14.9 KG |
Application fields
Truck Bodies
Building Material
Wall panel，partition
